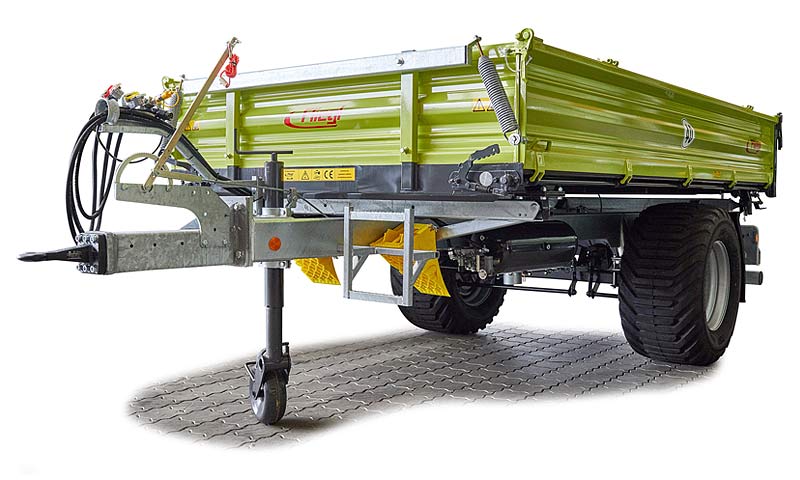

EDK 80-4000 | Standard equipment

  • 1-axle chassis
  • Permitted total weight Germany 8000 kg, drawbar load 1000 kg
  • Bridge 4000 mm x 2220 mm, corner posts pluggable, circumferential rubber seal guided in
  • special profile, bridge frame made of high-quality hollow girders, painted novagrey
  • Basic tailgate 4000 mm x 2220 mm x 500 mm, central locking right, left and rear and tailgate connector, grain outlet 400 mm x 230 mm, steel tailgates (sandblasted, primed and powder-coated light green)
  • Hollow section frame, galvanised - unsprung
  • 1 brake axle, track width 1850 mm
  • Overrun brake, Rückmatik
  • DIN drawbar eye 40 (Ø 40 mm)
  • Tyres 385/65-R22.5 RE / load capacity per wheel 5000 kg at 60 km/h
  • 25 km/h version for GERMANY with TÜV data sheet for agricultural/forestry tractors
  • Heavy-duty support wheel, folding
  • 4-stage tipping cylinder, 1500 mm stroke, limit switch
  • 2 five-chamber lights without 12 V lighting carrier, with impact-resistant glass
  • Stopcock
