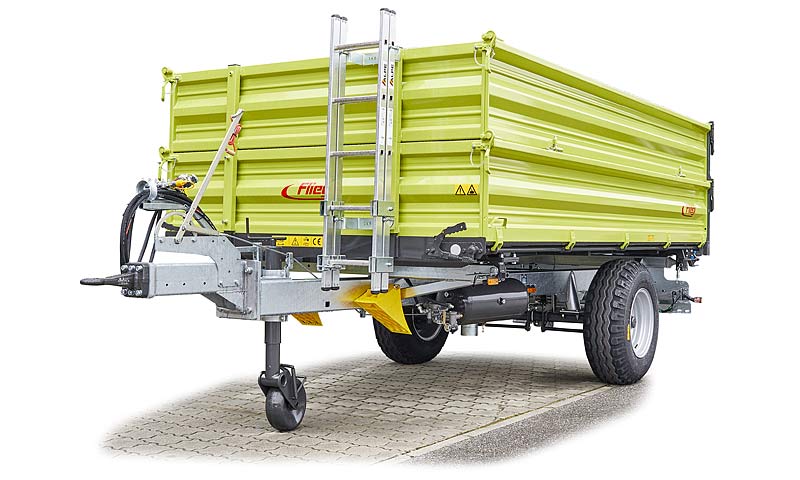

EDK 65 | Standard equipment

  • Single-axle chassis
  • Permitted total weight 6500 kg (equivalent to 5500 kg axle load plus 1000 kg drawbar load)
  • Coupling height approx. 850 mm
  • Bridge 4000 mm x 2220 mm, plug-in corner stanchions, all-round rubber seal with special profile, bridge frame made from high-quality hollow sections, painted nova grey
  • Base side panel 500 mm, side panel connectors, central locking right, left and rear, grain outlet 400 mm x 230 mm, steel side panels (sandblasted, primed and powder-coated light green)
  • Hollow section frame, galvanised - unsprung
  • 1 brake axle, track width 1850 mm
  • Rückmatik overrun brake
  • Rigid drawbar for top attachment
  • DIN drawbar eye 40 (Ø 40 mm)
  • Heavy-duty support wheel, folding
  • Tyres 12.5/80-18 12 PR
  • 25 km/h version for Germany with ABE, for agricultural/forestry tractors
  • 4-stage tipping cylinder, 1500 mm stroke, limit switch
  • 2 five-chamber lights, 12 V, with 7-pin connector and impact-resistant glass
  • Stopcock
